Kia Carens: Starting System / Troubleshooting

Kia Carens RP (2013-2018) Service Manual / Engine Electrical System / Starting System / Troubleshooting

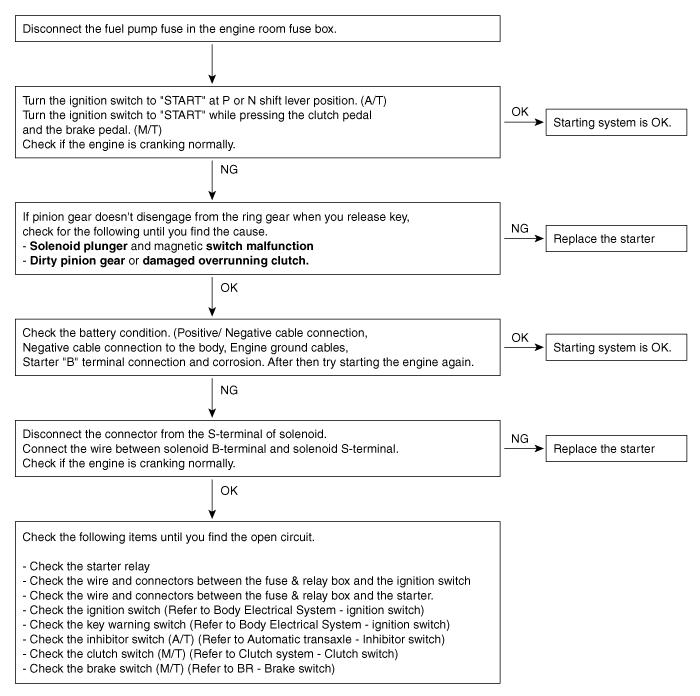

Troubleshooting

The battery must be in good condition and fully charged for this troubleshooting.
