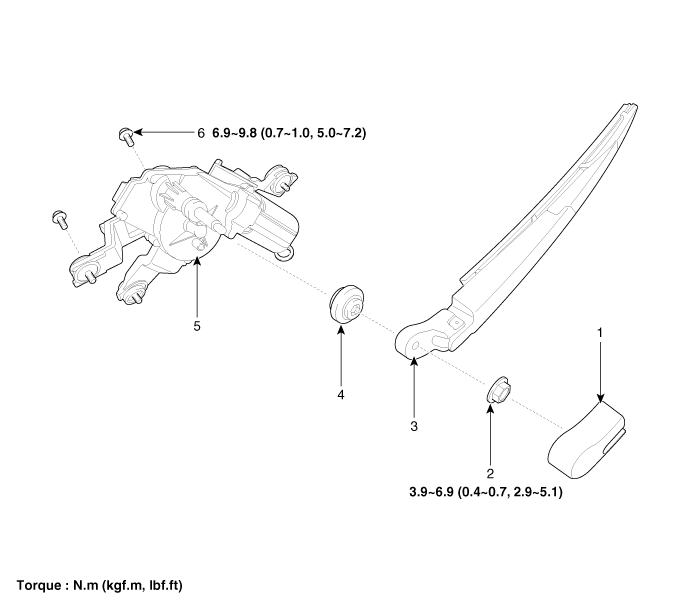

Component Location

1. Head cap
2. Rear wiper arm nut
3. Rear wiper arm & blade

4. Cap & pad assembly
5. Rear wiper motor assembly
6. Rear wiper motor bolt

Rear Wiper/Washer

...

Rear Wiper Motor Repair procedures

Inspection Rear Wiper Motor 1. Remove the connector from the rear wiper motor. 2. Connect battery positive (+) and negative (-) cabl ...
