Kia Carens: Horn / Components and components location

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Horn / Components and components location

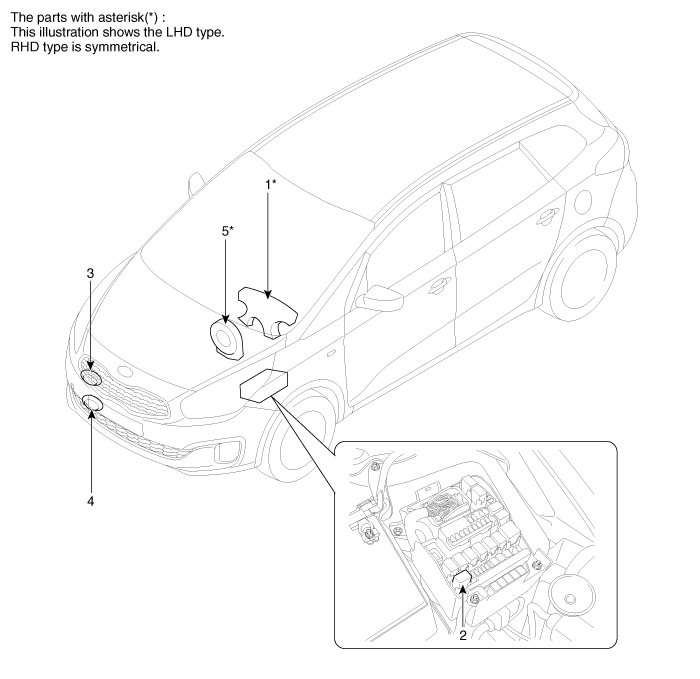

Component Location

1. Horn switch
2. Horn relay (Engine room compartment)
3. Horn (High pitch)

4. Horn (Low pitch)
5. Clock spring

Repair procedures

Removal 1. Remove the front bumper cover. (Refer to Body - "Front Bumper Cover") 2. Remove the bolts and disconnect t ...
