Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Seat Electrical / Air Ventilation Seat Control Unit Components and components location

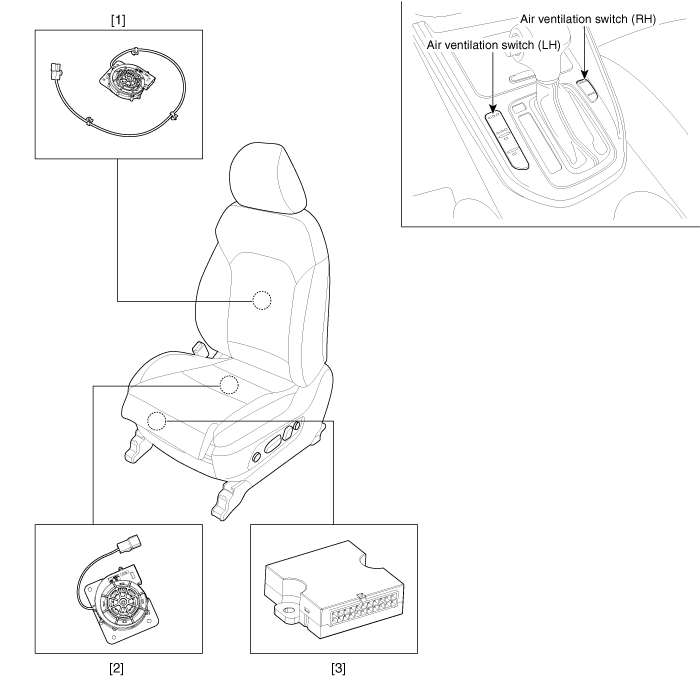

Component Location

1. Seat back blower
2. Seat cushion blower
3. Air ventilation seat control unit

Seat Heater (Air Ventilation) Repair procedures
Inspection Front Seat 1. Check for continuity and measure the resistance between terminals. No. Descript ...

Air Ventilation Seat Control Unit Schematic diagrams
Circuit Diagram ...
