Kia Carens: Blind Spot Detection system (BSD) / Blind Spot Detection Indicator Components and components location

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Blind Spot Detection system (BSD) / Blind Spot Detection Indicator Components and components location

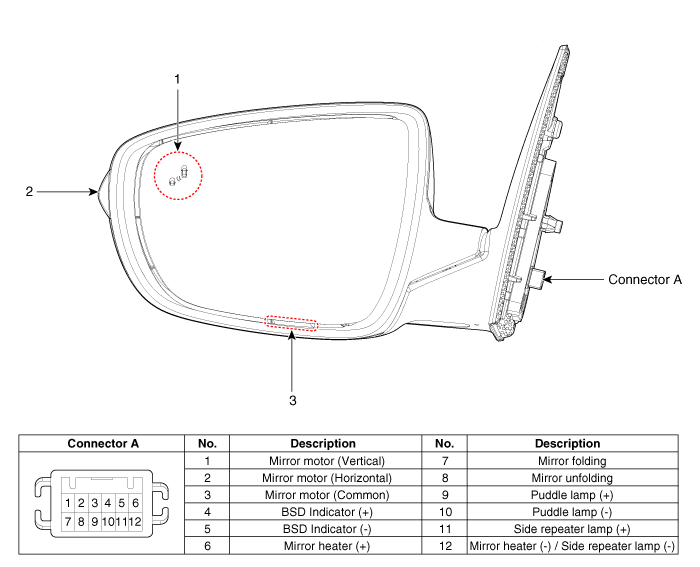

Components

1. BSD warning lamp
2. Side repeater lamp
3. Puddle lamp

Blind Spot Detection Switch Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Using a screwdriver or remover, remove the crash pad side cover [LH] (A ...

Blind Spot Detection Indicator Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the mirror (A) from the mirror holder. 3. ...
