Description

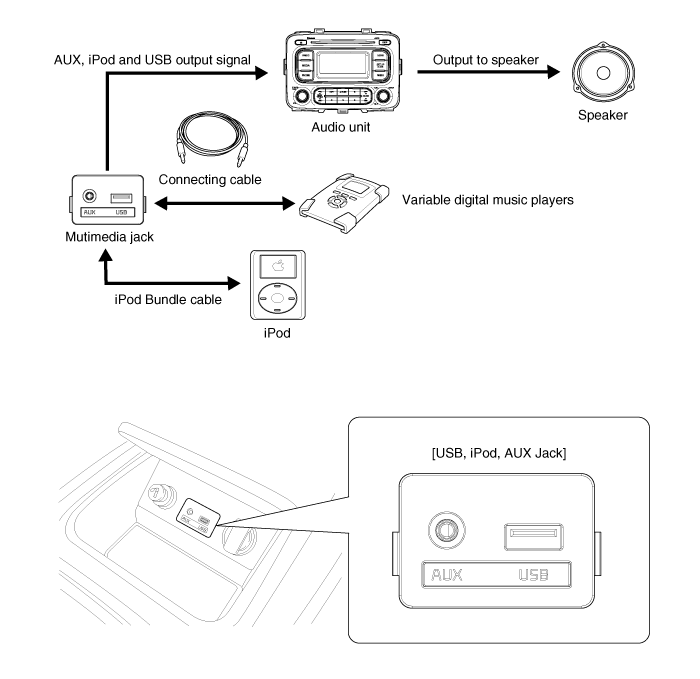

The AUX, iPod and USB JACK on the center console is for customers who like to listen to external portable music players like the MP3, iPod, earphone, USB memory stick, CD player and etc., through the vehicle's sound system when it is linked to this jack.

If sound distortion occurs it may be due to a mismatch of specifications between units.

AUX(Auxiliary) Jack Schematic diagrams

Circuit Diagram ...

AUX(Auxiliary) Jack Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the console front complete assembly (A). (Refer to Body - &q ...
