Kia Carens: Audio / AUX(Auxiliary) Jack Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Audio / AUX(Auxiliary) Jack Schematic diagrams

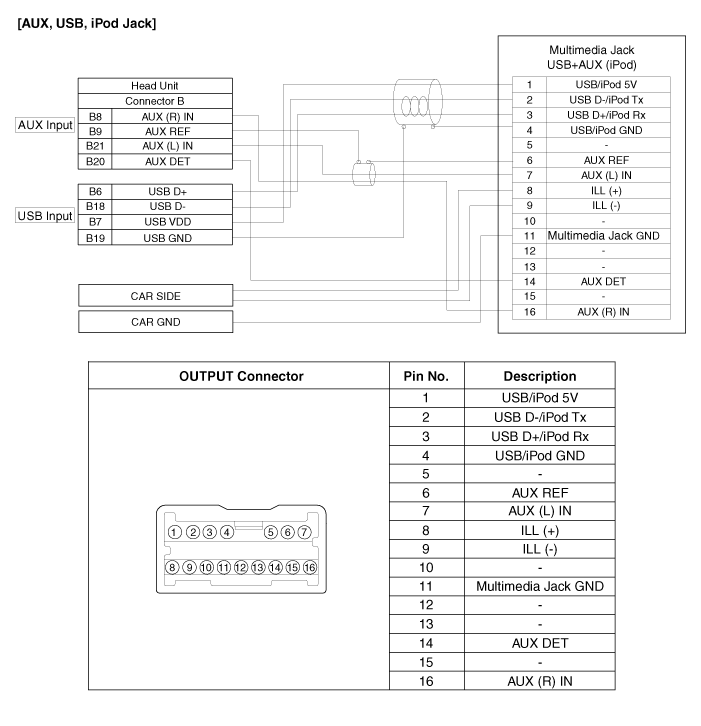

Circuit Diagram

Audio Remote Control Repair procedures
Inspection 1. Check for resistance or output voltage between terminals in each switch position. [Audio (A)] Switch ...

AUX(Auxiliary) Jack Description and operation
Description The AUX, iPod and USB JACK on the center console is for customers who like to listen to external portable music players like the MP3, iPod, earphone, USB memory stick ...
