Kia Carens: Transaxle Shift Indicator / Automatic Transaxle Shift Indicator

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Instrument cluster / Transaxle Shift Indicator / Automatic Transaxle Shift Indicator

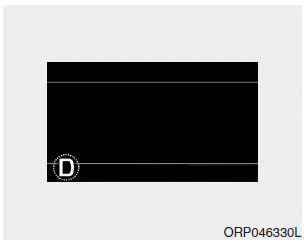

This indicator displays which automatic transaxle shift lever is selected.

Automatic Transaxle Shift Indicator in Sports Mode (if equipped, For Europe)

In the Sports Mode, this indicator informs which gear is desired while driving to save fuel.

For example

: Indicates that shifting up to the 3rd gear is desired (currently the shift lever is in the 2nd or 1st gear).

: Indicates that shifting down to the 3rd gear is desired (currently the shift lever is in the 4th, 5th, or 6th gear).

When the system is not working properly, the indicator is not displayed.
