Kia Carens: Audio / Audio Remote Control Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Audio / Audio Remote Control Schematic diagrams

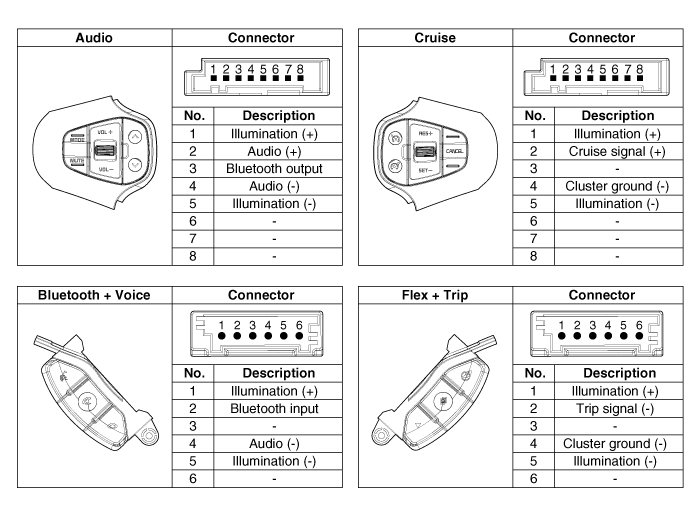

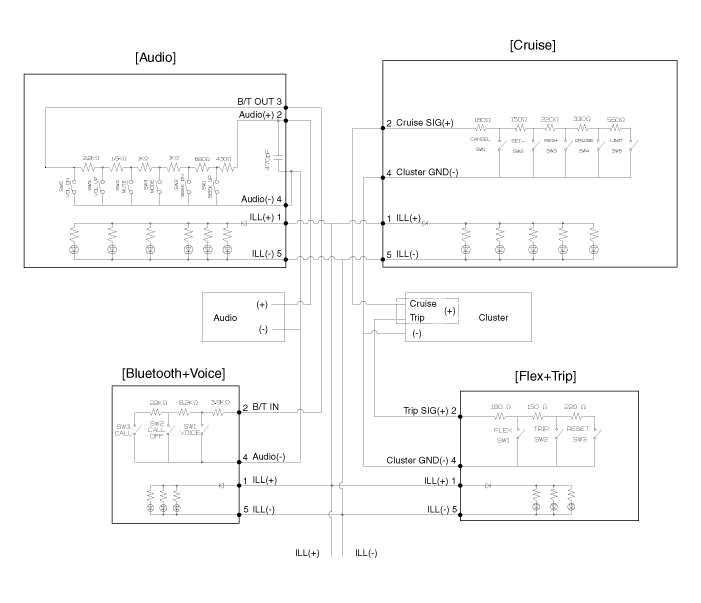

Circuit Diagram

Audio Remote Control Components and components location
Components 1. Remote control switch (LH) 2. Remote control switch (RH) 3. Bluetooth hands free switch 4. Trip switch ...

Audio Remote Control Repair procedures
Inspection 1. Check for resistance or output voltage between terminals in each switch position. [Audio (A)] Switch ...

Other information:

Kia Carens RP (2013-2018) Service Manual: Cruise Control Switch Repair procedures


Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the driver airbag module. (Refer to Restraint - "Driver Airbag (DAB) Module and Clock Spring") 3. Remove the steerin ...
