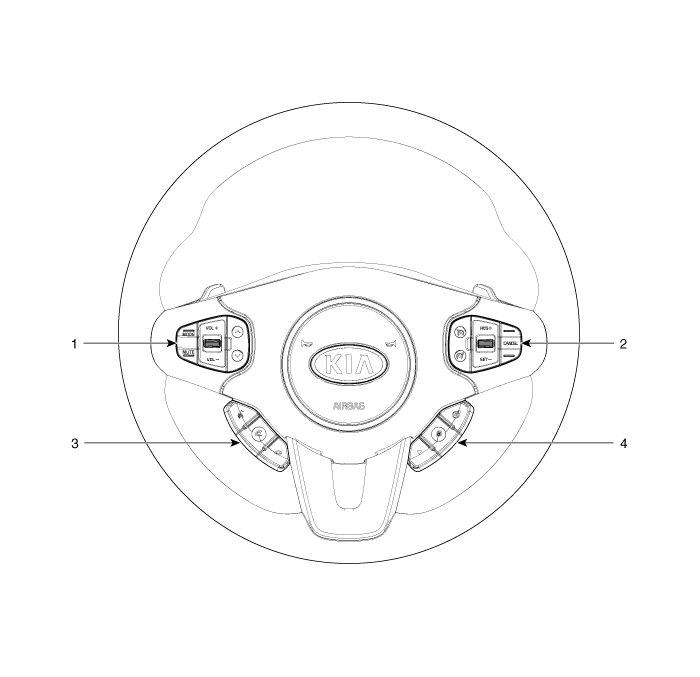

Components

1. Remote control switch (LH)
2. Remote control switch (RH)
3. Bluetooth hands free switch
4. Trip switch

Antenna Repair procedures
Inspection Antenna Cable 1. Remove the antenna jack from the audio unit and antenna. 2. Check for continuity between the center pole ...

Audio Remote Control Schematic diagrams
Circuit Diagram ...
