Kia Carens: Trailer Towing / If you do decide to pull a trailer

Kia Carens RP (2013-2018) Owners Manual / Driving your vehicle / Trailer Towing / If you do decide to pull a trailer

Here are some important points if you decide to pull a trailer:

Consider using a sway control.You can ask a hitch dealer about sway control.
Do not do any towing with your car during its first 2,000 km (1,200 miles) in order to allow the engine to properly break in. Failure to heed this caution may result in serious engine or transaxle damage.
When towing a trailer, we recommend that you consult an authorized Kia dealer on additional requirements such as a towing kit, etc. • Always drive your vehicle at a moderate speed (less than 100 km/h (60 mph)).
On a long uphill grade, do not exceed 70 km/h (45 mph) or the posted towing speed limit, whichever is lower.

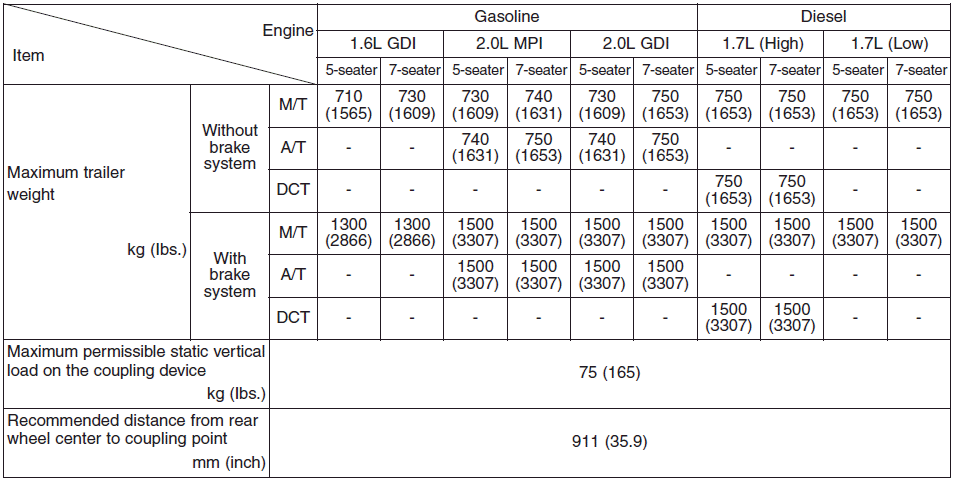

The chart contains important considerations that have to do with weight:

For Europe

M/T : Manual transaxle
A/T : Automatic transaxle
DCT : Dual Clutch Transmission

Maintenance when trailer towing

Your vehicle will need service more often when you regularly pull a trailer. Important items to pay particular attention to include engine oil, transmission fluid, axle lubricant and cooling system ...

Weight of the trailer

What is the maximum safe weight of a trailer? It should never weigh more than the maximum trailer weight with trailer brakes. But even that can be too heavy. It depends on how you plan to use your t ...
