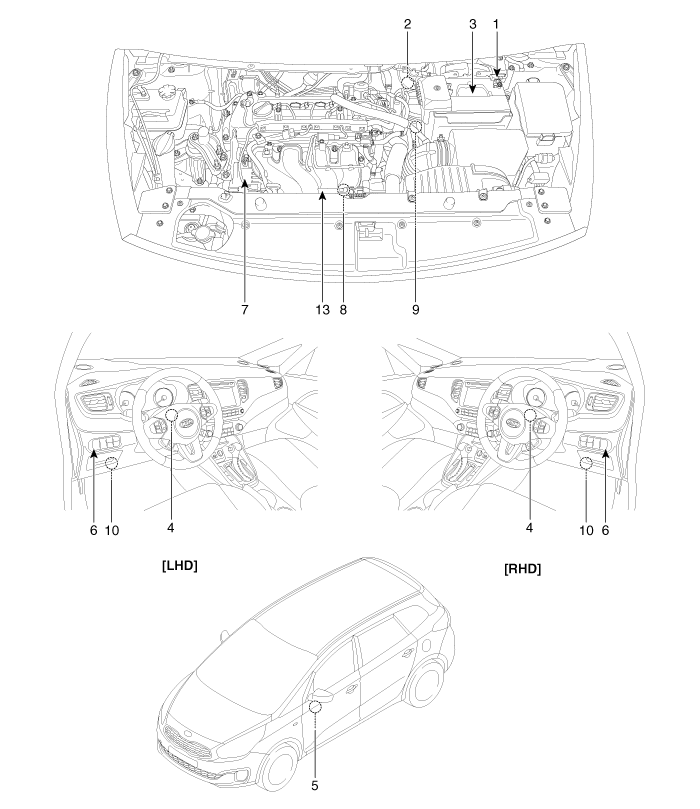

Components Location

1. Battery Sensor
2. Brake Booster Vacuum Pressure Sensor (BBVPS)
3. AGM Battery
4. DC DC Converter [200W Type]
5. DC DC Converter [400W Type]
6. ISG OFF Switch
7. Alternator
8. Starter
9. Neutral Switch
10. Clutch Switch
11. Door Switch
12. Seat Belt Switch
13. Hood Switch

1 . Battery sensor
3 . AGM battery
2 . Brake Booster Vacuum Pressure Sensor (BBVPS)

4 . DC DC Converter [200W type]
5 . DC DC Converter [400W type]

6. ISG OFF switch
7 . Alternator

8. Starter
9. Neutral switch

10. Clutch switch
11. Door switch

12. Seat belt switch
13. Hood Switch [LHD]
