Kia Carens: Wipers and washers / Windshield washers (front)

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Wipers and washers / Windshield washers (front)

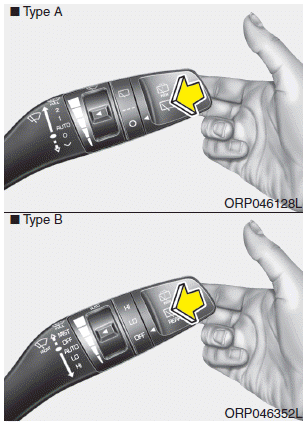

In the O (Off) position, pull the lever gently toward you to spray washer fluid on the windshield and to run the wipers 1-3 cycles.

Use this function when the windshield is dirty.

The spray and wiper operation will continue until you release the lever.

If the washer does not work, check the washer fluid level. If the fluid level is not sufficient, you will need to add appropriate non-abrasive windshield washer fluid to the washer reservoir.

The reservoir filler neck is located in the front of the engine compartment on the passenger side.

CAUTION

To prevent possible damage to the washer pump, do not operate the washer when the fluid reservoir is empty.

WARNING

Do not use the washer in freezing temperatures without first warming the windshield with the defrosters; the washer solution could freeze on the windshield and obscure your vision.

CAUTION

Windshield wipers
When the wiper blade is not in a normal position, place the ignition switch in the ON position. The wiper blade will return to the normal position. Following are cases a wiper blade may be in an abn ...

Headlight washer
If your vehicle is equipped with the headlight washer it will operate at the same time when you operate the windshield washer. It will operate when the headlight switch is in the first or second po ...
