Kia Carens: BSD (Blind Spot Detection) / LCA (Lane Change Assist) / Warning message

Kia Carens RP (2013-2018) Owners Manual / Driving your vehicle / Blind spot detection system (BSD) / BSD (Blind Spot Detection) / LCA (Lane Change Assist) / Warning message

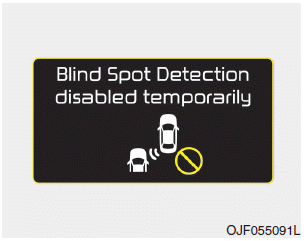

The message will appear to notify the driver if there are foreign substances on the surface or inside the rear bumper or it is hot near the rear bumper. The light on the switch and the system will be turned off automatically. Remove the foreign substance on the rear bumper.

After the foreign substance is removed, if you drive for approximately 10 minutes, the system will work normally.

If the system does not work normally even though the foreign substance is removed, take your vehicle to an authorized Kia dealer and have the system checked.

It is possible to get the message with no foreign substance on the rear bumper, for example, when driving in sparse rural or open area, such as desert, where there is insufficient data for operation.

This message may also activate during heavy rain or due to road spray and trailer.

When you use trailer or other utility, please turn off the system. If you want to use Blind Spot Detection system, please remove trailer or other utility.

In this case, the vehicle does not need service.

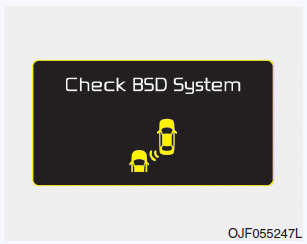

If the system does not work properly, a warning message will appear and the light on the switch will turn off.The system will turn off automatically.

We recommend you to have the system checked by an authorized Kia dealer.

Detecting sensor
The sensors are located inside the rear bumper. Always keep the rear bumper clean for the system to work properly. ...

RCTA (Rear cross traffic alert)
When your vehicle moves backwards from a parking position, the sensor detects approaching vehicles to the left or right side direction and gives information to the driver. ...
