Kia Carens: BSD (Blind Spot Detection) / LCA (Lane Change Assist) / Detecting sensor

Kia Carens RP (2013-2018) Owners Manual / Driving your vehicle / Blind spot detection system (BSD) / BSD (Blind Spot Detection) / LCA (Lane Change Assist) / Detecting sensor

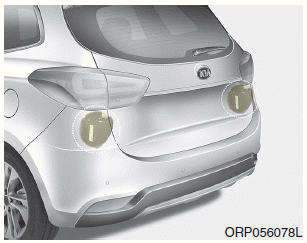

The sensors are located inside the rear bumper.

Always keep the rear bumper clean for the system to work properly.
