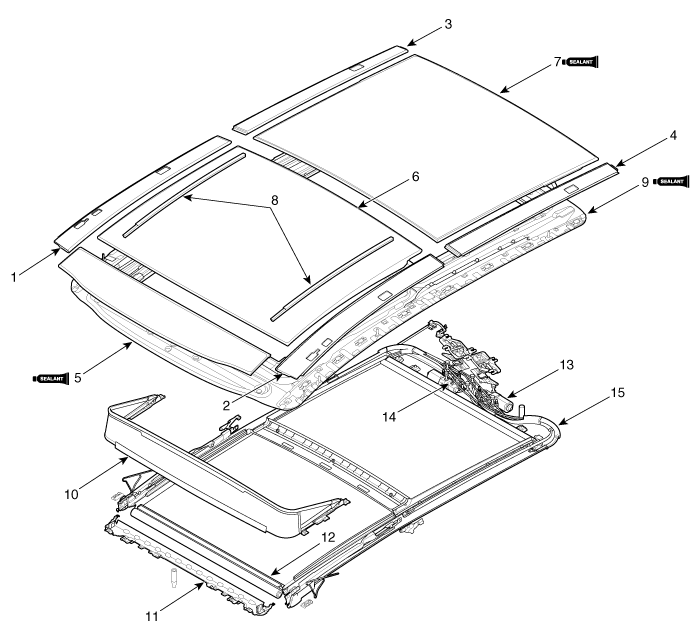

Components

1. Front roof side moulding [RH]
2. Front roof side moulding [LH]
3. Rear roof side moulding [RH]
4. Rear roof side moulding [LH]
5. Front glass
6. Movable glass
7. Rear glass
8. Decoration cover
9. Panorama sunroof frame assembly
10. Wind deflector
11. Roller blind lower support
12. Roller blind
13. Movable glass motor
14. Roller blind motor
15. Mechanism rail assembly

Panorama sunroof
...

Repair procedures
Adjustment Inspect Glass Alignment 1. Inspect the alignment of the movable glass (C) that is between the front (A) and rear (B) glass and if needed adjust it. ...
