Kia Carens: Blind spot detection system (BSD) / RCTA (Rear cross traffic alert)

Kia Carens RP (2013-2018) Owners Manual / Driving your vehicle / Blind spot detection system (BSD) / RCTA (Rear cross traffic alert)

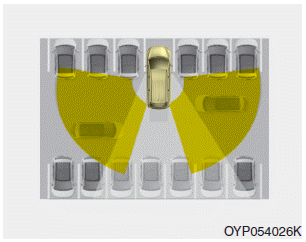

When your vehicle moves backwards from a parking position, the sensor detects approaching vehicles to the left or right side direction and gives information to the driver.

Warning message
The message will appear to notify the driver if there are foreign substances on the surface or inside the rear bumper or it is hot near the rear bumper. The light on the switch and the system will ...

Operating conditions
Select “Driving Assist“ under "User Settings“ and click “Rear Collision Warning” to select “Rear Cross Traffic Alert” on the instrument cluster. Then, the system will turn on and s ...
