Kia Carens: Engine Control System / Variable Intake Solenoid (VIS) Valve Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Engine Control / Fuel System / Engine Control System / Variable Intake Solenoid (VIS) Valve Schematic diagrams

Circuit Diagram

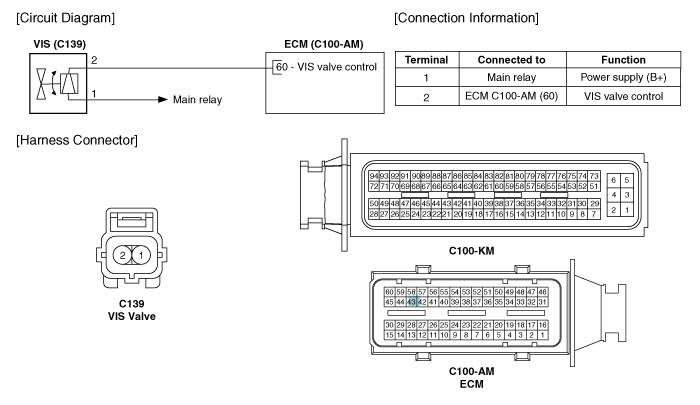

(M/T)

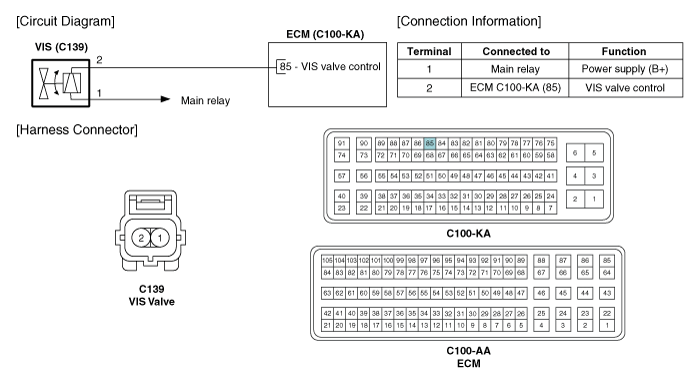

(A/T)

Variable Intake Solenoid (VIS) Valve Specifications
Specification Item Specification Coil resistance (Ω) 30.0 ~ 35.0 [20°C(68°F)] ...

Variable Intake Solenoid (VIS) Valve Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the VIS valve connector. 3. Measure resistance ...
