Kia Carens: Front light replacement / Turn signal light

Kia Carens RP (2013-2018) Owners Manual / Maintenance / Light bulbs / Front light replacement / Turn signal light

Follow the steps 1 to 2 from the previous page.

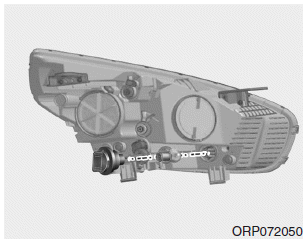

3. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

4. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

5. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

6. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.
