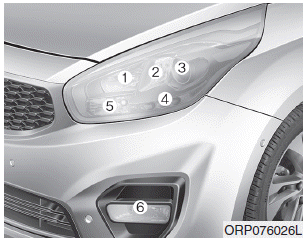

(1) Headlight (High)
(2) Static bending light
(3) Headlight (Low)
(4) Position light/Daytime running light (DRL, LED Type) (if equipped)
(5) Front turn signal light
(6) Front fog light (if equipped)

1. Turn off the engine and open the hood.

2. Disconnect the power connector front the back of the headlight assembly.

Light bulbs

WARNING - Working on the lights Prior to working on the light, firmly apply the parking brake, ensure that the ignition switch is turned to the “LOCK”position (smart key: turn off the engine) an ...

Follow the steps 1 to 2 from the previous chapter. 3. Remove the headlight bulb cover by turning it counterclockwise. 4. Disconnect the headlight bulb socket-connector. 5. Unsnap the headlight bulb r ...
