Kia Carens: Timing System / Timing Chain Cover Components and components location

Kia Carens RP (2013-2018) Service Manual / Engine Mechanical System / Timing System / Timing Chain Cover Components and components location

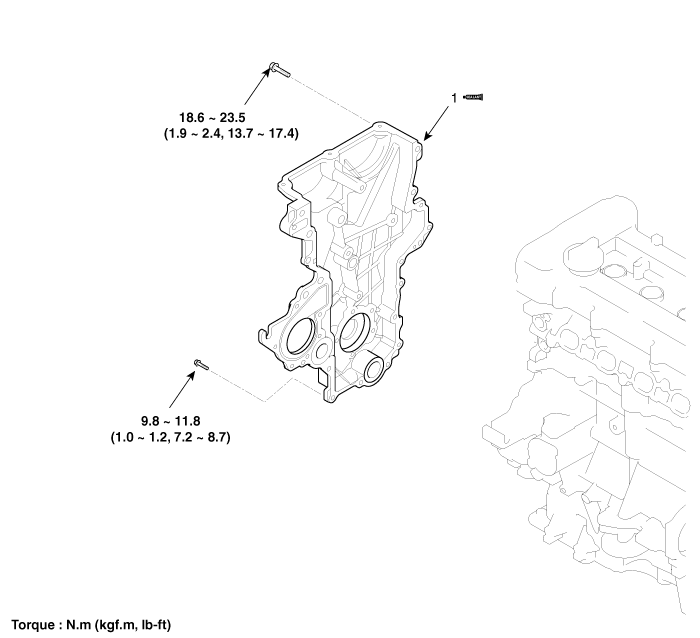

Components

1. Timing chain cover

Front Oil Seal Repair procedures

Removal and Installation 1. Crankshaft damper pulley. (Refer to Timing System - "Damper Pulley") 2. Remove the front ...

Timing Chain Cover Repair procedures

Removal • Use fender covers to avoid damaging painted surfaces. ...
