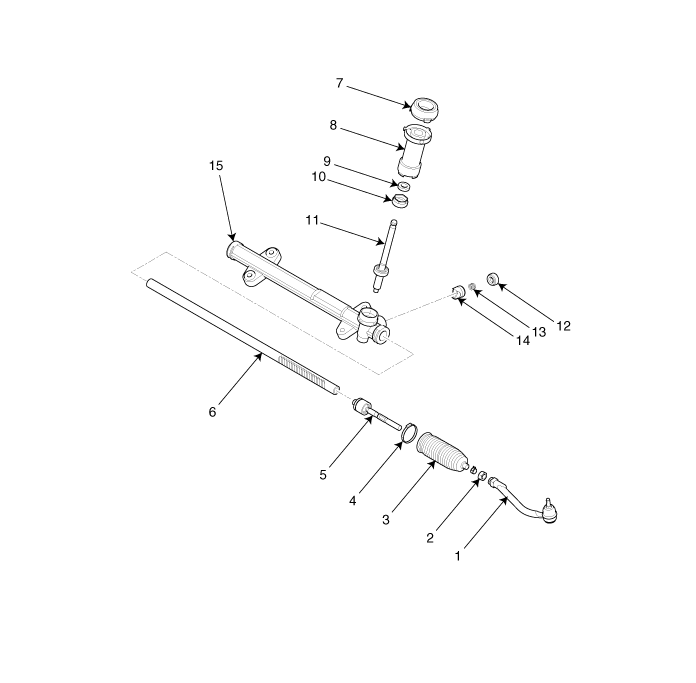

Components

1. Tie rod end
2. Lock nut
3. Bellows
4. Bellows band
5. Tie rod

6. Rack bar
7. Dust packing
8. Dust cap
9. Oil seal
10. Pinion plug

11. Pinion assembly
12. Yoke plug
13. Yoke spring
14. Support yoke assembly
15. Rack housing

Steering Column and Shaft Repair procedures

Replacement 1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds. 2. Turn the steering w ...

Steering Gear box Repair procedures

Replacement 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front w ...
