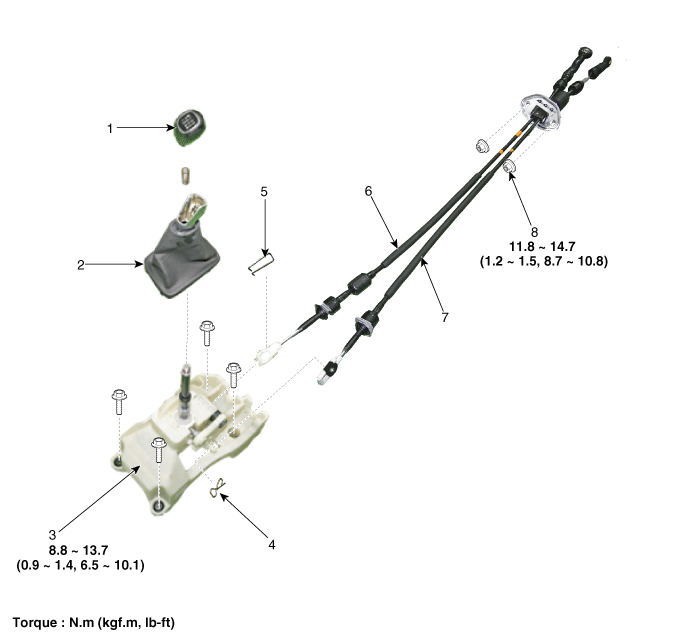

Components

1. Knob
2. Boots
3. Shift lever assembly
4. Select cable clip
5. Shift cable clip
6. Shift cable
7. Select cable
8. Cable retainer

Manual Transaxle Control System
...

Shift Lever Repair procedures
Removal 1. Disconnect the gear boots and then remove the knob and boots by Rotating counter-clockwise shift lever knob (A). 2. ...
