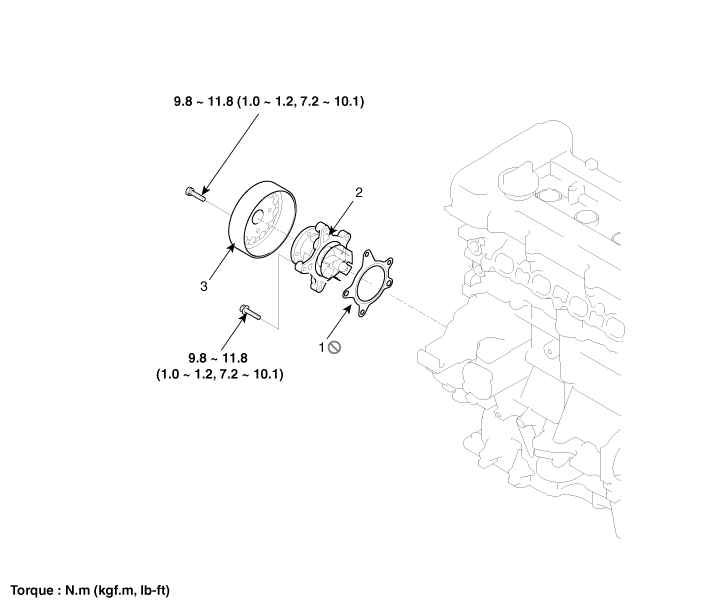

Components

1. Gasket
2. Water pump

3. Water pump pulley

Water Temperature Control Assembly Repair procedures

Removal and Installation 1. Remove the engine cover. 2. Drain the engine coolant. (Refer to Cooling System - "Coolant" ...

Water pump Components and components location

Components 1. Gasket 2. Water pump 3. Water pump pulley ...
