Kia Carens: Automatic Transaxle Control System / Shift Cable Components and components location

Kia Carens RP (2013-2018) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Shift Cable Components and components location

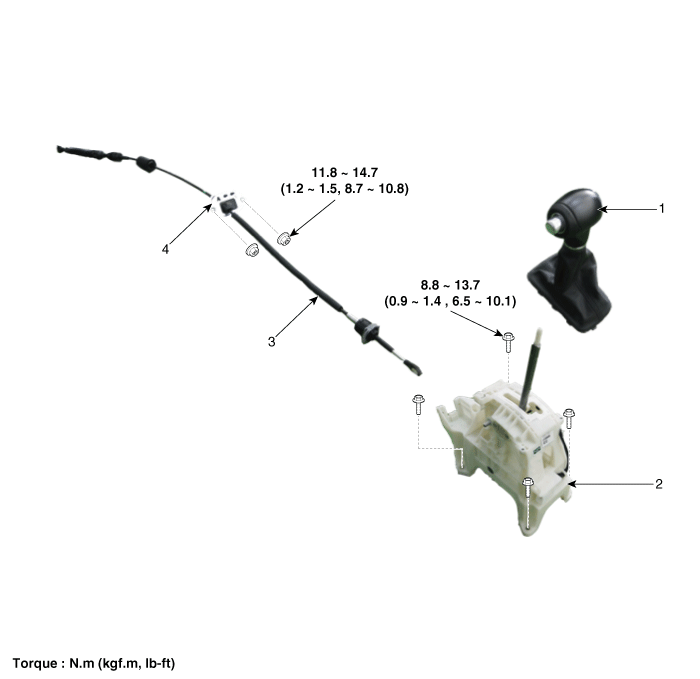

Components

1. Shift lever knob
2. Shift lever assembly

3. Shift cable assembly
4. Retainer

Shift Cable Components and components location

Components 1. Shift lever knob 2. Shift lever assembly 3. Shift cable assembly 4. Retainer ...
