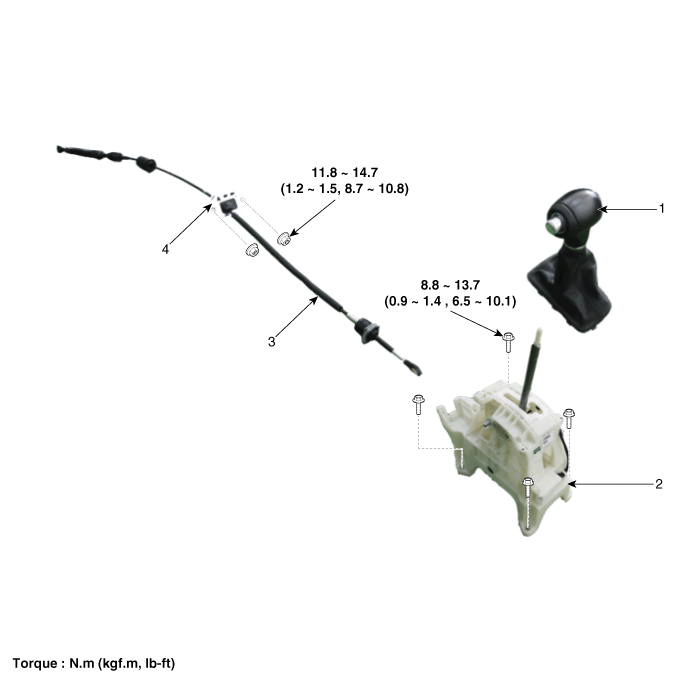

Components

1. Shift lever knob
2. Shift lever assembly
3. Shift cable assembly
4. Retainer

Shift Lever Repair procedures
Removal 1. Remove the floor console assembly. (Refer to Body “Floor Console”) 2. Disconnect the control cable (A). ...

Shift Cable Components and components location
Components 1. Shift lever knob 2. Shift lever assembly 3. Shift cable assembly 4. Retainer ...
