Kia Carens: Smart Parking Assist System (SPAS) / Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Smart Parking Assist System (SPAS) / Schematic diagrams

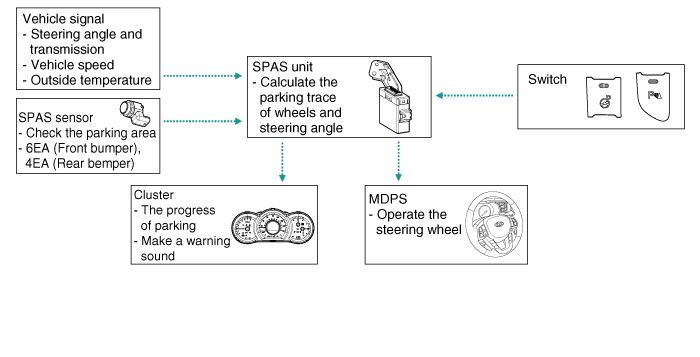

Block Diagram

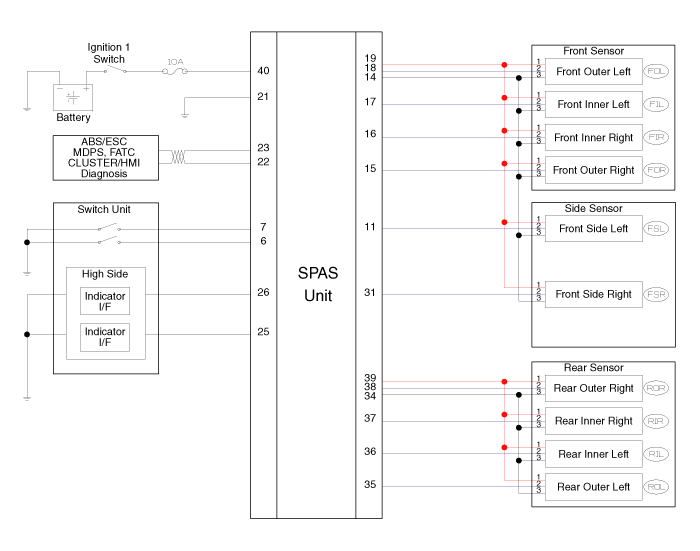

Circuit Diagram

Components and components location
Component Location Item Description SPAS SPAS unit (ECU) • Calculate the parking trace of wheels ...

Description and operation

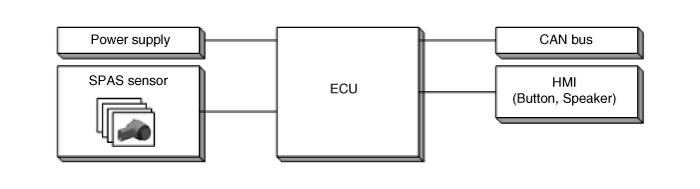

Description Overview of the System Environment The SPAS (Smart Parking Assist System) is part of a customer system providing the PAS and the SPAS functionality to the driver. ...
