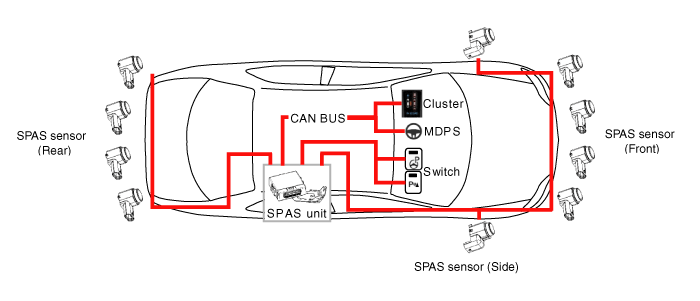

| Component Location |
|
Item |
Description |
|
|
SPAS |
SPAS unit (ECU) |
• Calculate the parking trace of wheels |
|
• Calculate and ask the demand angle to MDPS |
||
|
• Warning and detection logic of the front/rear object |
||
|
Front/Rear sensor |
• Detect the front/rear object |
|
|
Side sensor |
• Check the parking area |
|
|
Cluster |
• Output the SPAS HMI(Human Machine Interface) : The progress of parking
and object warning • Make a sound for warning : Front, rear and disable sound |
|
|
MDPS (Motor Driven Power Steering) |
• SPAS association control logic : Operate the steering wheel for SPAS
steering angle demand (Refer to the ST group - "MDPS system") |
|
|
Switch |
• SPAS switch and PAS ON/OFF switch. |
|
Specifications
Specifications
SPAS unit
Power
IGN 1
Operating voltage
9V ~ 16V
SPAS sensor (Front/Rear)
...
Schematic diagrams
Block Diagram
Circuit Diagram
...
