Kia Carens: Auto Lighting Control System / Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Auto Lighting Control System / Schematic diagrams

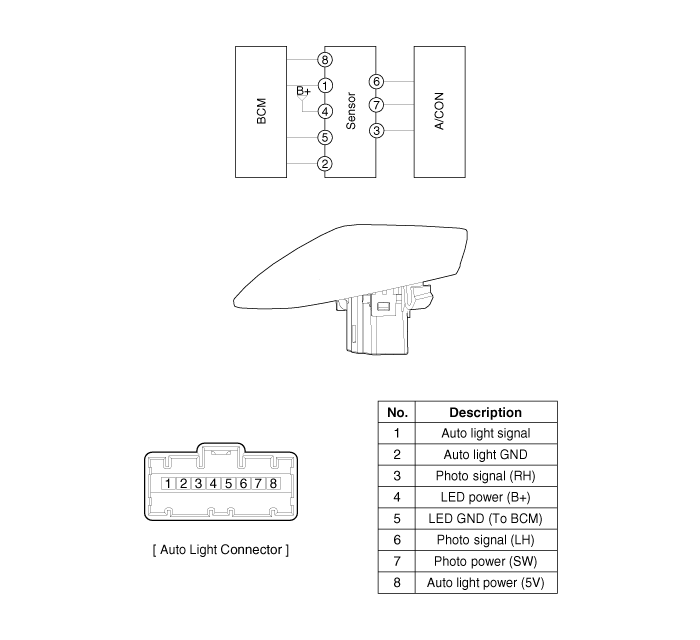

Circuit Diagram

Specifications
Specifications Items Specifications Rated voltage 5V Load Max. 1mA (When head lamp lighting) ...

Auto Light Switch Repair procedures
Inspection 1. Operate the auto light switch, then check for continuity between terminals of multi-function switch connector. [LHD] [RHD] ...
