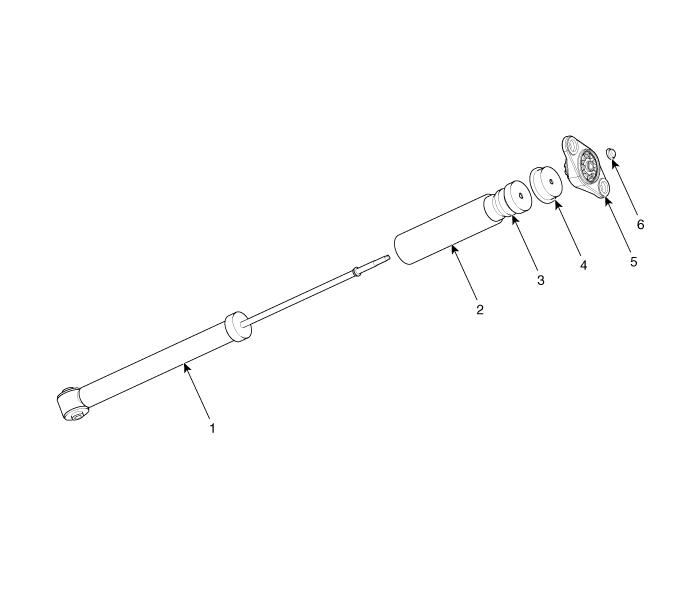

Components

1. Shock absorber assembly
2. Dust cover
3. Bump stopper
4. Cup
5. Insulatol assembly
6. Lock nut

Components and components location
Components Location 1. Torsion beam axle 2. Shock absorber 3. Coil spring assembly ...

Rear Shock Absorber Repair procedures
Replacement 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel ...
