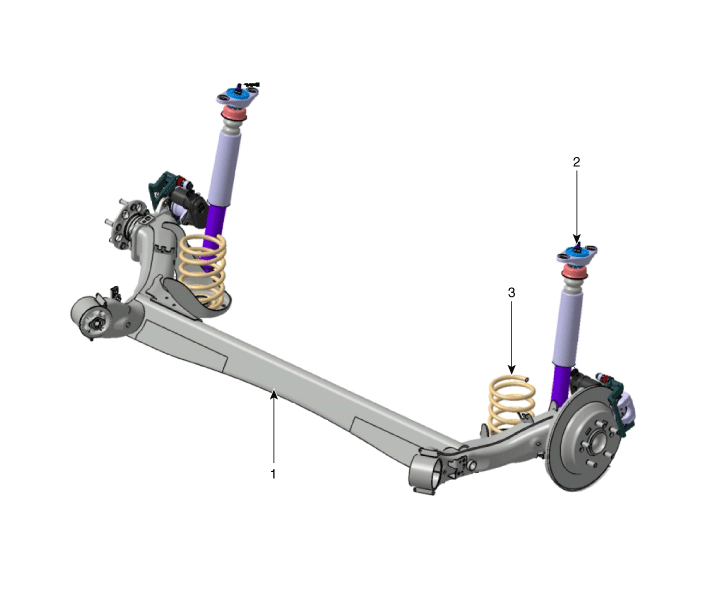

Components Location

1. Torsion beam axle
2. Shock absorber
3. Coil spring assembly

Rear Suspension System
...

Rear Shock Absorber Components and components location
Components 1. Shock absorber assembly 2. Dust cover 3. Bump stopper 4. Cup 5. Insulatol assembly 6. Lock nut ...
