Component Location
[Second row seat assembly]
(Except Europe and Australia)

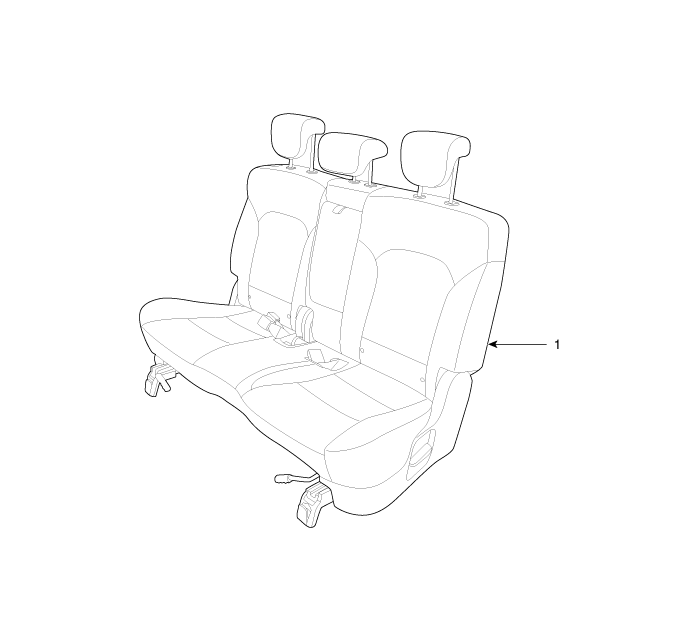

[5-seat vehicle]

1. Second row seat assembly


(Except Europe and Australia)

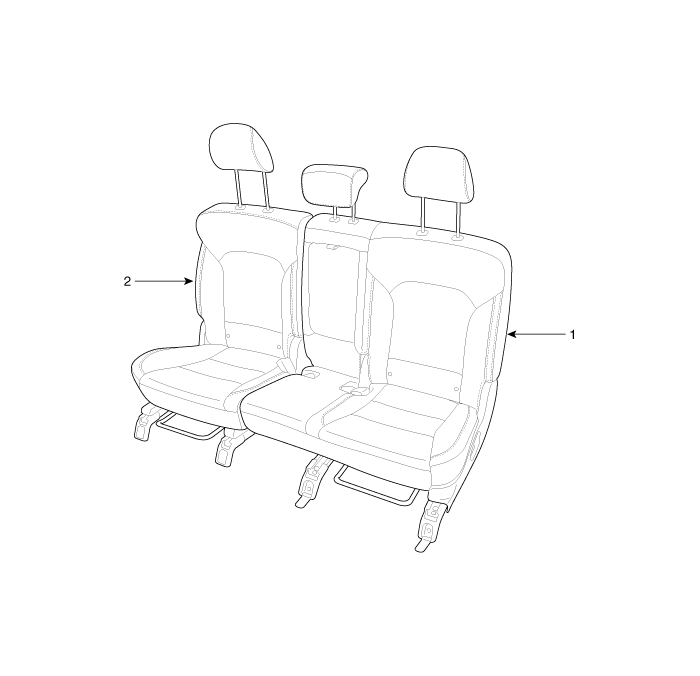

[7-seat vehicle]

1. Second row seat assembly [LH]
2. Second row seat assembly [RH]

(For Europe and Australia)

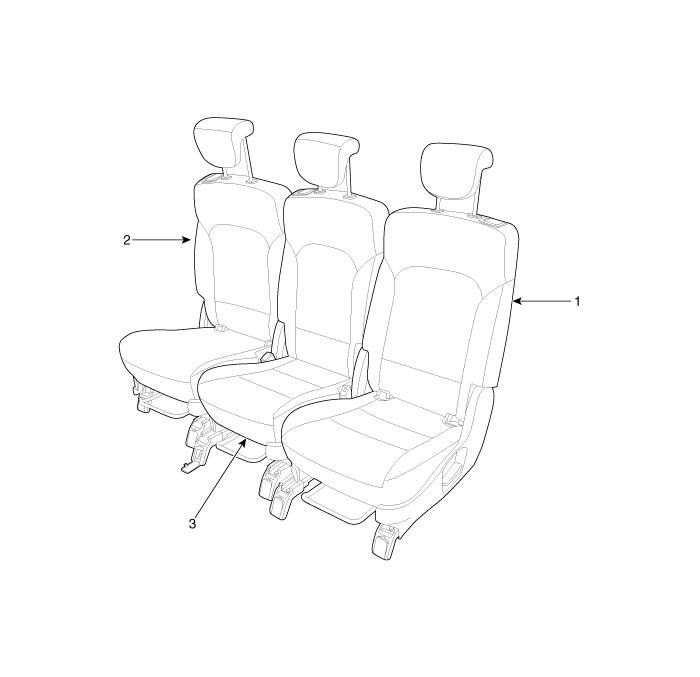

[5/7-seat vehicle]

1. Second row seat assembly [LH]
2. Second row seat assembly [RH]
3. Second row seat assembly [Center]

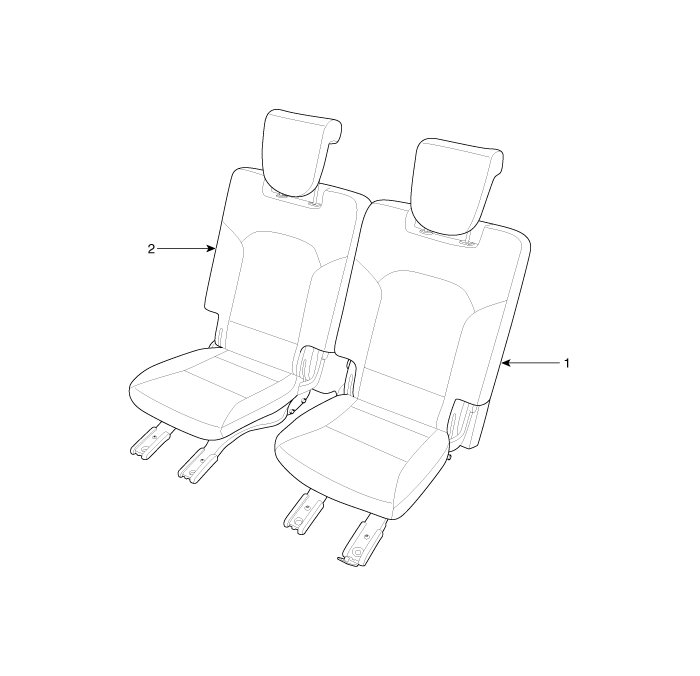

[Third row seat assembly]

1. Third row seat assembly [LH]
2. Third row seat assembly [RH]

Components and components location
Components (1) [Second row seat assembly] (Except Europe and Australia) [5-seat vehicle] (Rear Seat Back Assembly) (LH) ...

Rear Seat Assembly Repair procedures
Replacement [Second row seat assembly] (Except Europe and Australia) [5-seat vehicle] 1. Push the second row seat assembly (A) towards the front of the ve ...
