Kia Carens: Rear Seat / Components and components location

Kia Carens RP (2013-2018) Service Manual / Body (Interior and Exterior) / Rear Seat / Components and components location

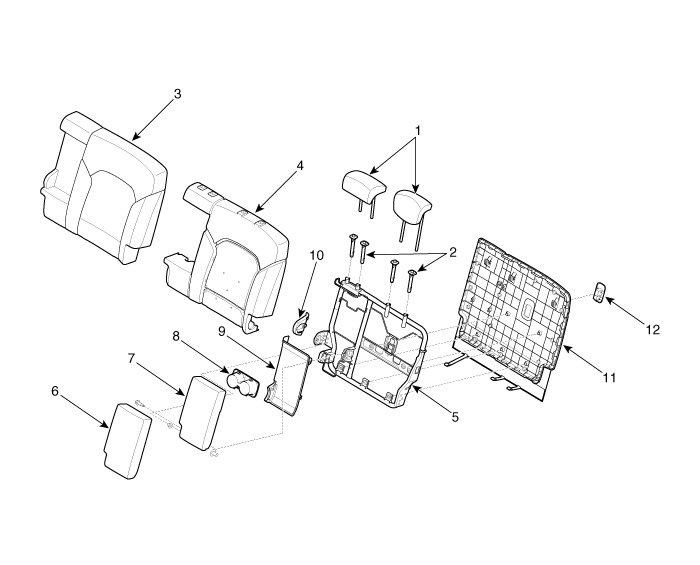

Components (1)
[Second row seat assembly]
(Except Europe and Australia)
[5-seat vehicle]
(Rear Seat Back Assembly)
(LH)

1. Rear seat headrest
2. Rear seat headrest guide
3. Rear seat back cover
4. Rear seat back pad
5. Rear seat back frame assembly
6. Rear seat armrest cover
7. Rear seat armrest pad & frame assembly
8. Drink holder
9. Rear seat armrest board
10. Rear seat armrest board hinge cover
11. Rear seat back board
12. Tether anchor garnish

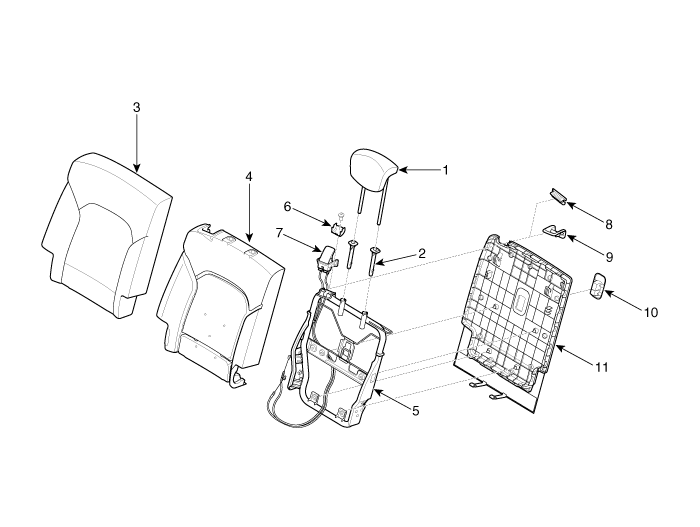

Components (2)
(RH)

1. Rear seat headrest
2. Rear seat headrest guide
3. Rear seat back cover
4. Rear seat back pad
5. Rear seat back frame assembly
6. Rear seat back webbing lever cap
7. Rear seat back webbing lever
8. Rear seat back cover lever
9. Rear seat back webbing lever upper bezel
10. Tether anchor garnish
11. Rear seat back board

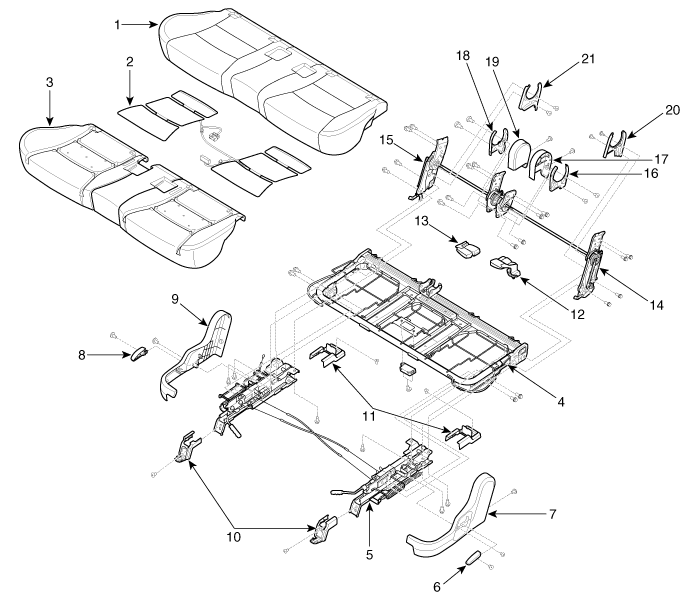

Components (3)
(Rear Seat Cushion Assembly)

1. Rear seat cushion cover
2. Rear seat cushion heater
3. Rear seat cushion pad
4. Rear seat cushion frame assembly
5. Rear seat cushion track assembly
6. Rear seat recliner lever [LH]
7. Rear seat shield outer cover [LH]
8. Rear seat recliner lever [RH]
9. Rear seat shield outer cover [RH]
10. Rear seat foot front cover
11. Rear seat foot rear cover
12. Rear seat belt buckle [LH]
13. Rear seat belt buckle [RH]
14. Rear seat recliner assembly [LH]
15. Rear seat recliner assembly [RH]
16. Rear seat cushion inside inner cover [LH]
17. Rear seat cushion shield inner cover [LH]
18. Rear seat cushion inside inner cover [RH]
19. Rear seat cushion shield inner cover [RH]
20. Rear seat cushion inside outer cover [LH]
21. Rear seat cushion inside outer cover [RH]

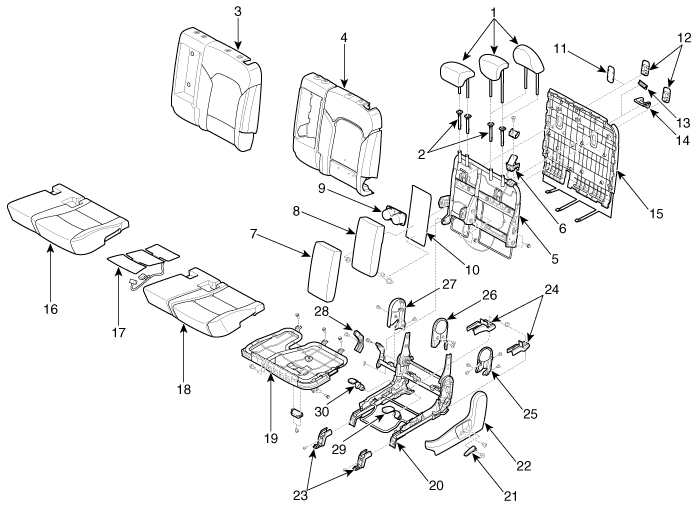

Components (4)
(Except Europe and Australia)
[7-seat vehicle]
(LH)

1. Rear seat headrest
2. Rear seat headrest guide
3. Rear seat back cover
4. Rear seat back pad
5. Rear seat back frame assembly
6. Rear seat back webbing lever
7. Rear seat armrest cover
8. Rear seat armrest pad & frame assembly
9. Drink holder
10. Rear seat armrest board
11. Rear seat back board cap
12. Tether anchor garnish
13. Rear seat back cover lever
14. Rear seat back webbing lever upper bezel
15. Rear seat back board
16. Rear seat cushion cover
17. Rear seat cushion heater
18. Rear seat cushion pad
19. Rear seat cushion frame assembly
20. Rear seat cushion track assembly
21. Rear seat recliner lever
22. Rear seat shield outer cover
23. Rear seat foot front cover
24. Rear seat foot rear cover
25. Rear seat cushion inside outer cover
26. Rear seat cushion inside inner cover
27. Rear seat cushion shield inner cover
28. Rear seat inner hinge bracket cover
29. Rear seat belt buckle [LH]
30. Rear seat belt mini buckle

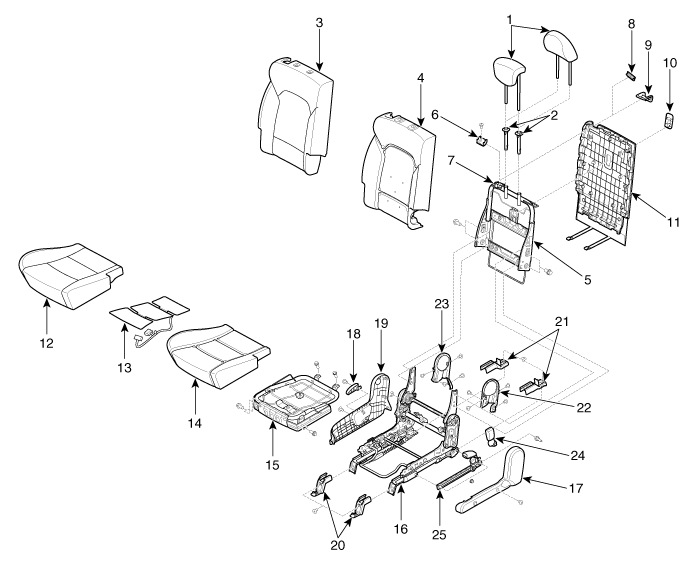

Components (5)
(RH)

1. Rear seat headrest
2. Rear seat headrest guide
3. Rear seat back cover
4. Rear seat back pad
5. Rear seat back frame assembly
6. Rear seat back webbing lever cap
7. Rear seat back webbing lever
8. Rear seat back cover lever
9. Rear seat back webbing lever upper bezel
10. Tether anchor garnish
11. Rear seat back board
12. Rear seat cushion cover
13. Rear seat cushion heater
14. Rear seat cushion pad
15. Rear seat cushion frame assembly
16. Rear seat cushion track assembly
17. Rear seat shield inner cover
18. Rear seat recliner lever
19. Rear seat shield outer cover
20. Rear seat foot front cover
21. Rear seat foot rear cover
22. Rear seat cushion inside inner cover
23. Rear seat cushion inside outer cover
24. Rear seat belt buckle [RH]
25. Rear center seat belt buckle rail

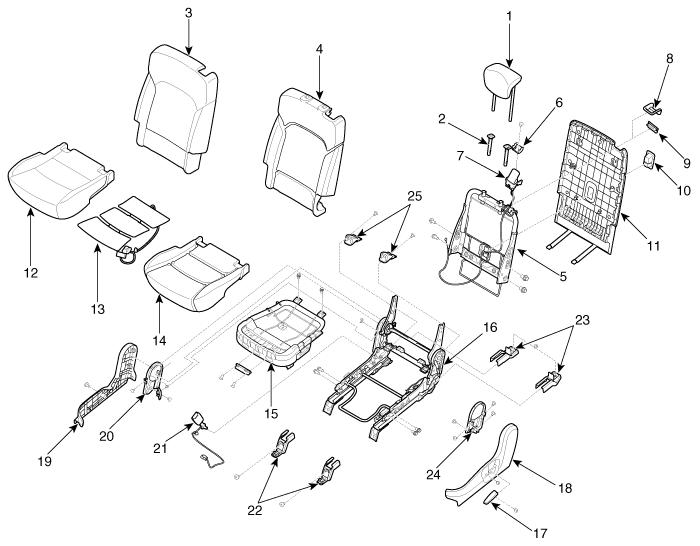

Components (6)
(For Europe and Australia)
[5/7-seat vehicle]
(LH,RH)

1. Rear seat headrest
2. Rear seat headrest guide
3. Rear seat back cover
4. Rear seat back pad
5. Rear seat back frame assembly
6. Rear seat back webbing lever cap
7. Rear seat back webbing lever
8. Rear seat back webbing lever upper bezel
9. Rear seat back cover lever
10. Tether anchor garnish
11. Rear seat back board
12. Rear seat cushion cover
13. Rear seat cushion heater
14. Rear seat cushion pad
15. Rear seat cushion frame assembly
16. Rear seat cushion track assembly
17. Rear seat recliner lever
18. Rear seat shield outer cover
19. Rear seat shield inner cover
20. Rear seat cushion inside inner cover
21. Rear seat belt buckle [LH]
22. Rear seat foot front cover
23. Rear seat foot rear cover
24. Rear seat cushion inside outer cover
25. Rear seat isofix cover

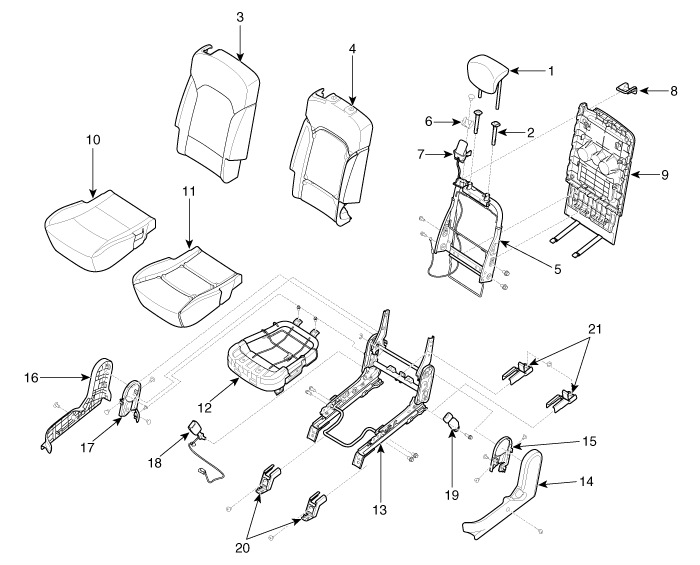

Components (7)
(Center)

1. Rear seat headrest
2. Rear seat headrest guide
3. Rear seat back cover
4. Rear seat back pad
5. Rear seat back frame assembly
6. Rear seat back webbing lever cap
7. Rear seat back webbing lever
8. Rear seat back webbing lever upper bezel
9. Rear seat back board
10. Rear seat cushion cover
11. Rear seat cushion pad
12. Rear seat cushion frame assembly
13. Rear seat cushion track assembly
14. Rear seat shield outer cover
15. Rear seat cushion inside outer cover
16. Rear seat shield inner cover
17. Rear seat cushion inside inner cover
18. Rear center seat belt buckle
19. Rear seat belt mini buckle
20. Rear seat foot front cover
21. Rear seat foot rear cover

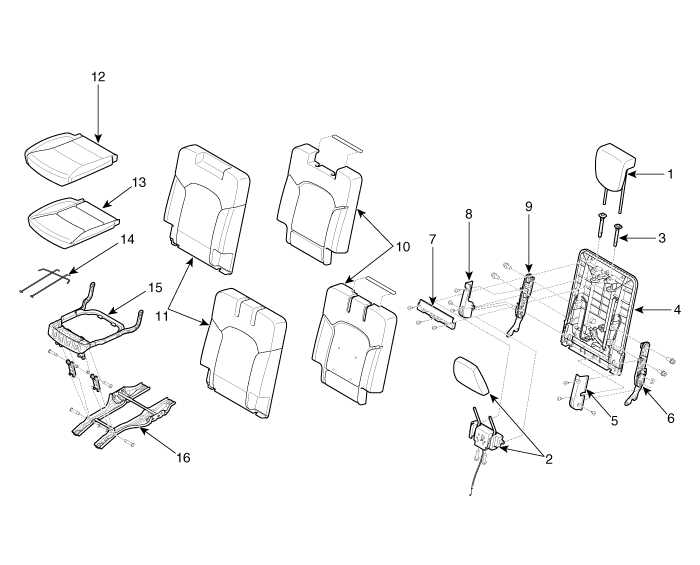

Components (8)
[Third row seat assembly]
(LH,RH)

1. Rear seat headrest
2. Rear seat headrest [Folding Type]
3. Rear seat headrest guide
4. Rear seat back board
5. Rear seat outer link cover
6. Rear seat outer link assembly
7. Rear seat back board upper cover
8. Rear seat inner link cover
9. Rear seat inner link assembly
10. Rear seat back pad
11. Rear seat back cover
12. Rear seat cushion cover
13. Rear seat cushion pad
14. Rear seat cushion wire assembly
15. Rear seat cushion frame assembly
16. Rear seat cushion track assembly
