Kia Carens RP (2013-2018) Service Manual / Engine Mechanical System / Cooling System / Radiator Components and components location

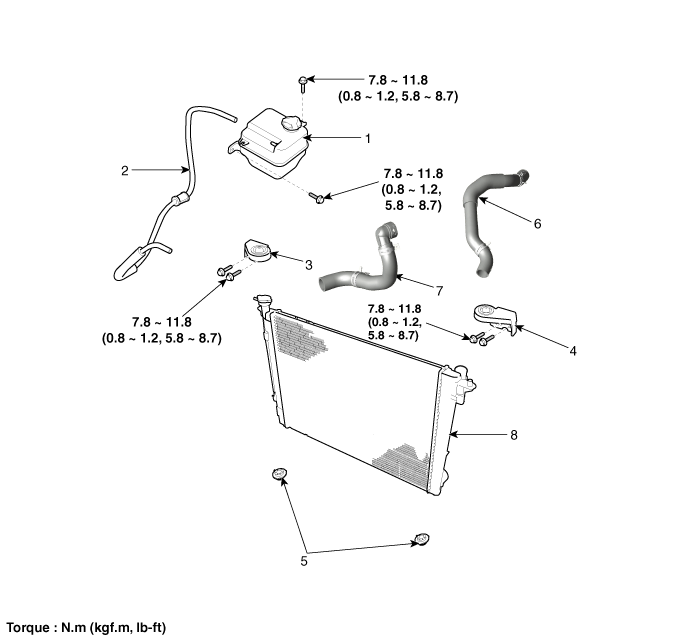

Components

1.  Reservoir tank
2.  Overflow hose
3.  Radiator upper bracket (RH)
4.  Radiator upper bracket (LH)
5.  Mounting insulator
6.  Radiator upper hose
7.  Radiator lower hose
8.  Radiator

Cooling Fan Repair procedures
Removal and Installation Cooling fan assembly 1. Remove the engine room under cover. (Refer to Engine And Transaxle Assembly - “Engine Room Under Coverâ ...

Radiator Repair procedures
Inspection Radiator Cap Testing 1. Remove the radiator cap, wet its seal with engine coolant, and then install it on a pressure tester. ...
