Kia Carens: Lane Departure Warning System (LDWS) / Components and components location

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Lane Departure Warning System (LDWS) / Components and components location

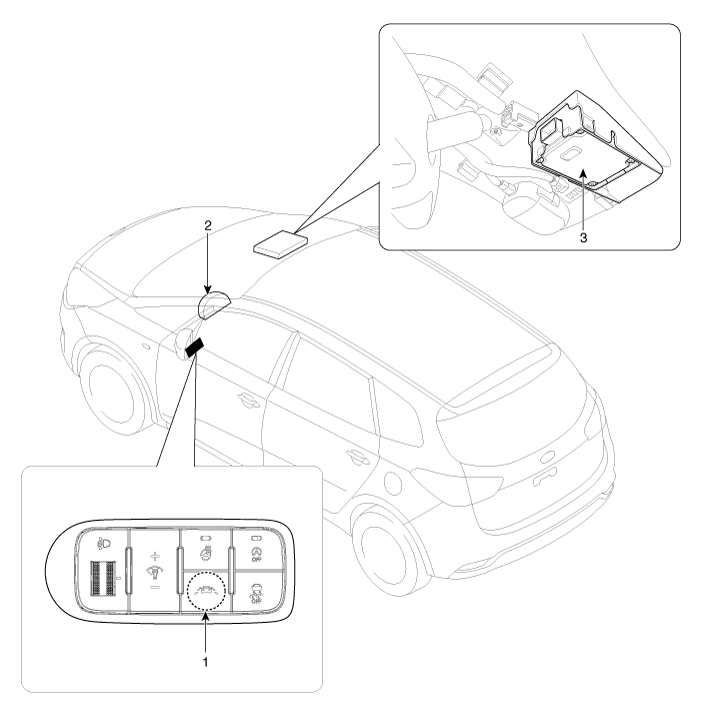

Components

1. LDWS ON/OFF switch
2. Instrument cluster
3. LDWS unit

Lane Departure Warning System (LDWS)
...

Description and operation
Description System Operation Typically, lane departure warning is activated at a speed over 60 km, in case of unintentional lane departure when driver do not operate turn signal ...
