Kia Carens: Gauges / Odometer

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Instrument cluster / Gauges / Odometer

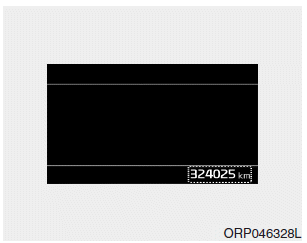

The odometer Indicates the total distance that the vehicle has been driven and should be used to determine when periodic maintenance should be performed.

- Odometer range : 0 ~ 1599999 kilometers or 0 ~ 999999 miles.
