Kia Carens: Gauges / Fuel Gauge

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Instrument cluster / Gauges / Fuel Gauge

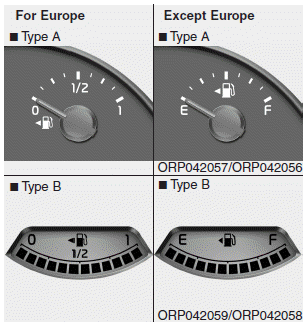

This gauge indicates the approximate amount of fuel remaining in the fuel tank.

✽ NOTICE

The fuel tank capacity is given in chapter 9.
The fuel gauge is supplemented by a low fuel warning light, which will illuminate when the fuel tank is nearly empty.
On inclines or curves, the fuel gauge pointer may fluctuate or the low fuel warning light may come on earlier than usual due to the movement of fuel in the tank.

WARNING - Fuel Gauge

Running out of fuel can expose vehicle occupants to danger.

You must stop and obtain additional fuel as soon as possible after the warning light comes on or when the gauge indicator comes close to the “0 or E (Empty)” level.

CAUTION

Avoid driving with an extremely low fuel level. Running out of fuel could cause the engine to misfire damaging the catalytic converter.
