Kia Carens: Lighting / Lighting control

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Lighting / Lighting control

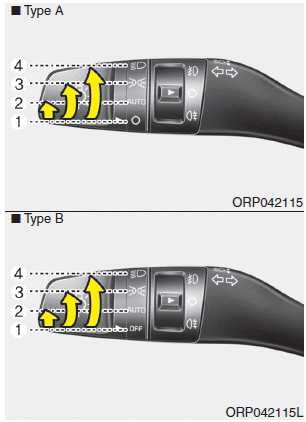

The light switch has a Headlight and a Parking light position.

To operate the lights, turn the knob at the end of the control lever to one of the following positions:

(1) OFF position
(2) Auto light position (if equipped)
(3) Parking light position
(4) Headlight position

Daytime running light
Daytime Running Lights (DRL) can make it easier for others to see the front of your vehicle during the day. DRL can be helpful in many different driving conditions, and it is especially helpful afte ...

Parking light position
When the light switch is in the parking light position, the tail, position, license and instrument panel lights are ON. ...
