Kia Carens: Lighting control / Headlight position

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Lighting / Lighting control / Headlight position

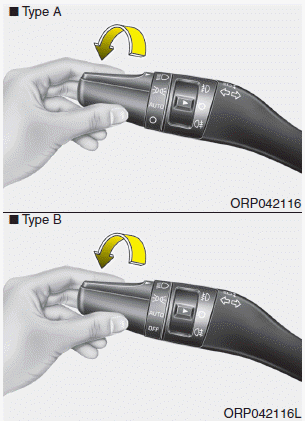

When the light switch is in the headlight position the head, tail, position, license and instrument panel lights are ON.

✽ NOTICE

The ignition switch must be in the ON position to turn on the headlights.
