Kia Carens: Ignition System / Ignition Coil Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Engine Electrical System / Ignition System / Ignition Coil Schematic diagrams

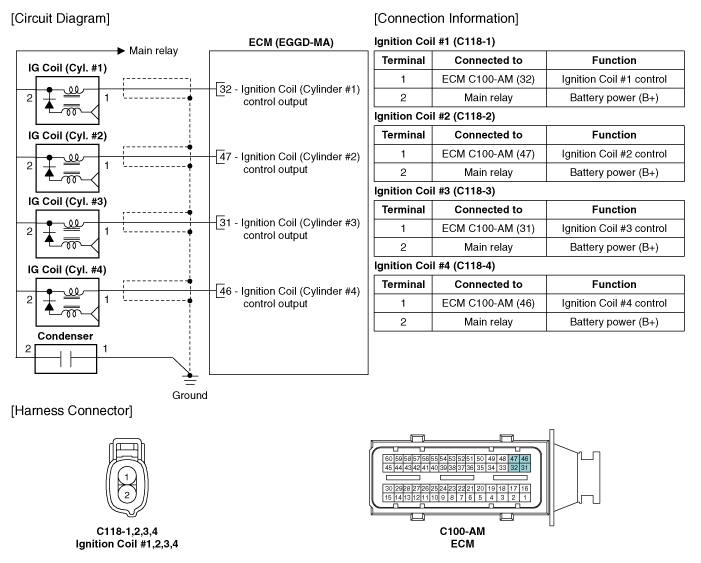

Circuit Diagram
