Kia Carens RP (2013-2018) Service Manual / Engine Mechanical System / Timing System / Components and components location

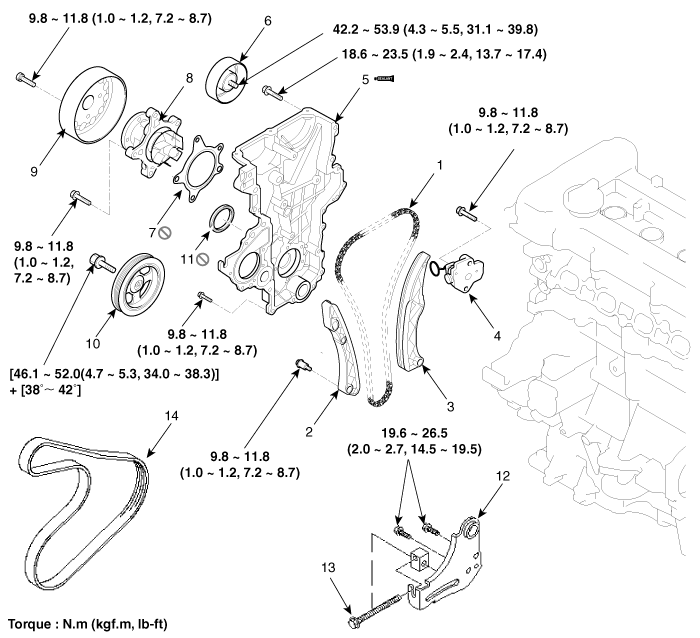

Components

1. Timing chain
2. Timing chain guide
3. Timing chain arm
4. Timing chain auto tensioner
5. Timing chain cover
6. Drive belt idler
7. Water pump gasket

8. Water pump
9. Water pump pulley
10. Crank shaft pulley
11. Front oil seal
12. Alternator bracket
13. Tension adjust bolt
14. Drive belt
