Kia Carens: Steering wheel / Heated steering wheel

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Steering wheel / Heated steering wheel

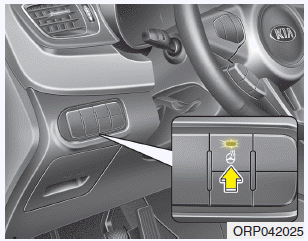

With the ignition switch in the ON position, pressing the heated steering wheel button warms the steering wheel.

✽ NOTICE

The heated steering wheel will turn off automatically approximately 30 minutes after the heated steering wheel is turned on.
If you turn on the ignition again after turn off the engine in half an hour (after operating heater button), the heated steering wheel will be maintained in its 'ON' condition.

CAUTION

Do not install any grip to operate the steering wheel. This causes damage to the heated steering wheel system.
When cleaning the heated steering wheel, do not use an organic solvent such as paint thinner, benzene, alcohol and gasoline. Doing so may damage the surface of the steering wheel.
If the surface of steering wheel is damaged by sharp object, damage to the heated steering wheel components could occur.
