Kia Carens: Hands Free System / Hands Free Switch Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Hands Free System / Hands Free Switch Schematic diagrams

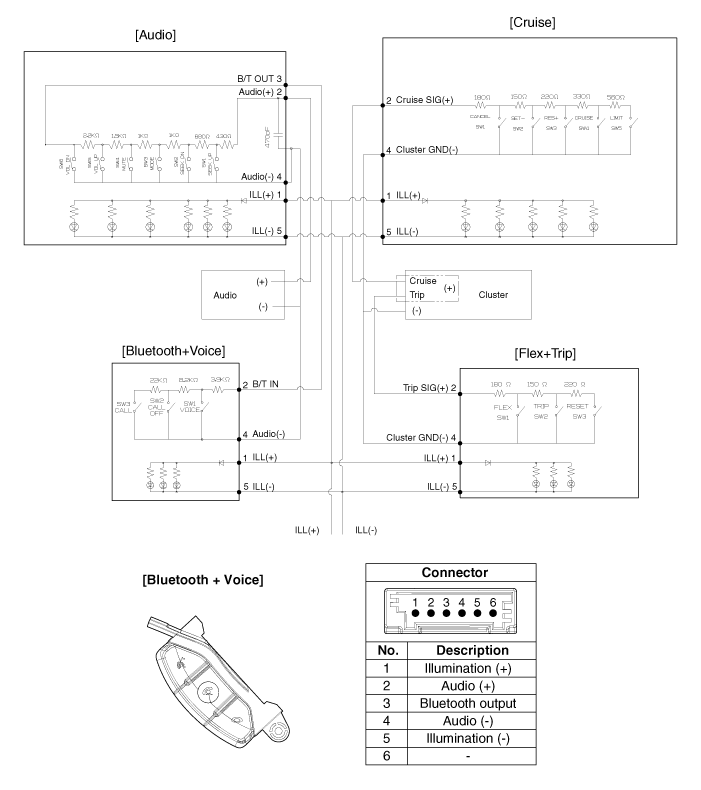

Circuit Diagram

Troubleshooting
Troubleshooting Problem Possible cause Solution Not pairing Bluetooth device of Car is not discoverable mode ...

Hands Free Switch Repair procedures
Inspection 1. Check for resistance between terminals in each switch position. [Bluetooth + Voice] Switch ...
