Kia Carens: Lighting / Rear fog light
To turn on the rear fog lights, do one of the following:

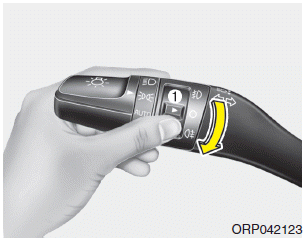

- Position the light switch in the headlight position and then turn the light
switch (1) to the rear fog light position.
- Position the light switch in the park light, turn the light switch to the
front fog light (if equipped) position, and then turn the light switch (1) to
the rear fog light position.
To turn the rear fog lights off, do one of the following:
- Turn off the headlight switch.
- Turn the light switch to the rear fog light position again.
- When the light switch in the park light, if you turn off the front fog light,
the rear fog light will also turn off.
Fog lights are used to provide improved visibility when visibility is poor due
to fog, rain or snow, etc.
1. Turn on the park light.
2. Turn the light switch (1) to the front fog light position.
3. ...
