Kia Carens: Interior Trim / Front Pillar Trim Components and components location

Kia Carens RP (2013-2018) Service Manual / Body (Interior and Exterior) / Interior Trim / Front Pillar Trim Components and components location

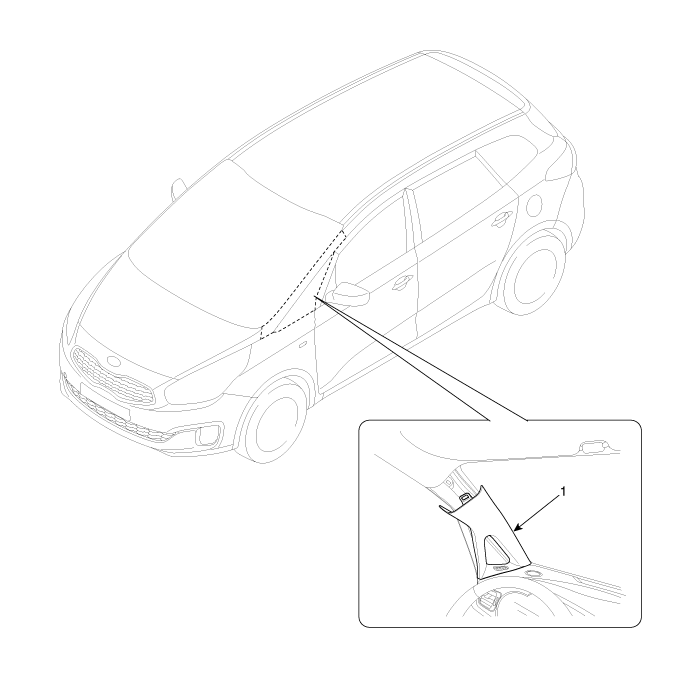

Component Location

1. Front pillar trim
