Kia Carens: AVN System / External Amplifier Components and components location

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / AVN System / External Amplifier Components and components location

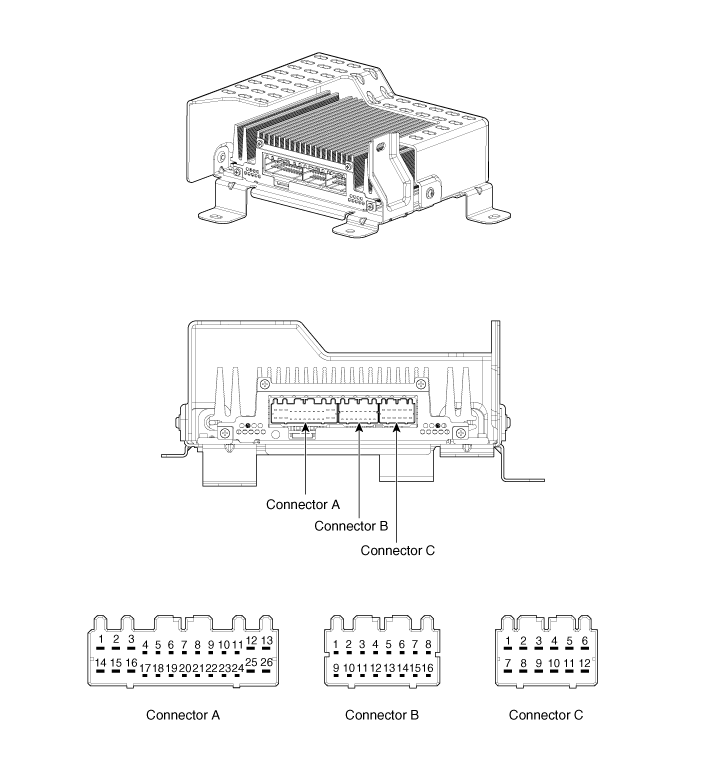

Components

Connector Pin Information
No.
Connector A (26 pin)
Connector B (16 pin)
Connector C (12 pin)
1
Battery (+)
-
Rear right door speaker (+)
2
Battery (+)
-
Rear left door  speaker (+)
3
Battery (+)
-
Front right tweeter speaker (+)
4
-
-
Front left tweeter speaker (+)
5
CAN (+)
-
Front right door speaker (+)
6
CAN (-)
-
Front left door speaker (+)
7
ACC
-
Rear right door speaker (-)
8
-
-
Rear left door speaker (-)
9
-
-
Front right tweeter speaker (-)
10
-
-
Front left tweeter speaker (-)
11
Navigation voice (+)
-
Front right door speaker (-)
12
Subwoofer 2 (+)
-
Front left door speaker (-)
13
Subwoofer 1 (+)
-

14
Ground
-
15
Ground
-
16
Ground
-
17
-

18
SPDIF (+)
19
SPDIF (-)
20
SPDIF ground
21
-
22
-
23
-
24
Navigation voice (-)
25
Subwoofer 2 (-)
26
Subwoofer 1 (-)
