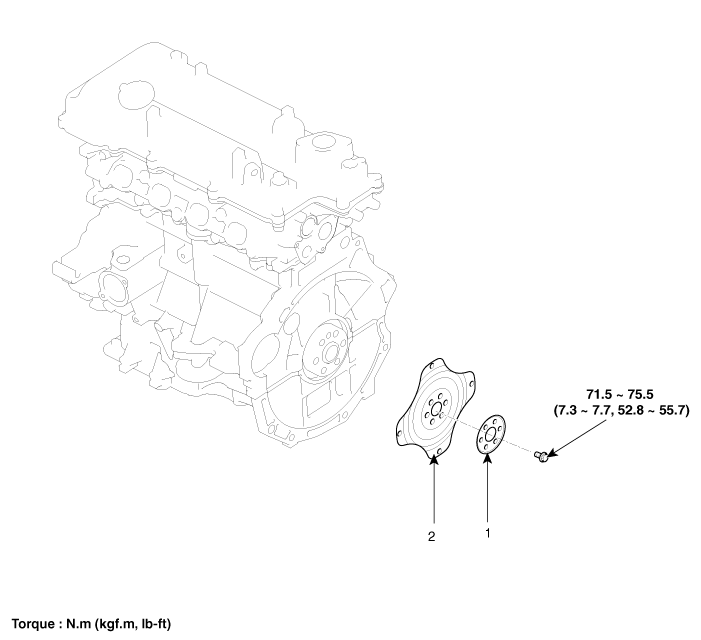

Components

1. Adapter plate

2. Drive plate

Components and components location

Components 1. Cylinder block 2. Ladder frame 3. Crankshaft 4. Crankshaft upper bearing 5. Crankshaft lower bearing 6. Thrust bearing 7. Main ...

Drive Plate Repair procedures

Removal and Installation 1. Remove the automatic transaxle . (Refer to Automatic Transaxle System - "Automatic Transaxle") 2. ...
