Kia Carens: Blower / Blower Unit Components and components location

Kia Carens RP (2013-2018) Service Manual / Heating,Ventilation And Air Conditioning / Blower / Blower Unit Components and components location

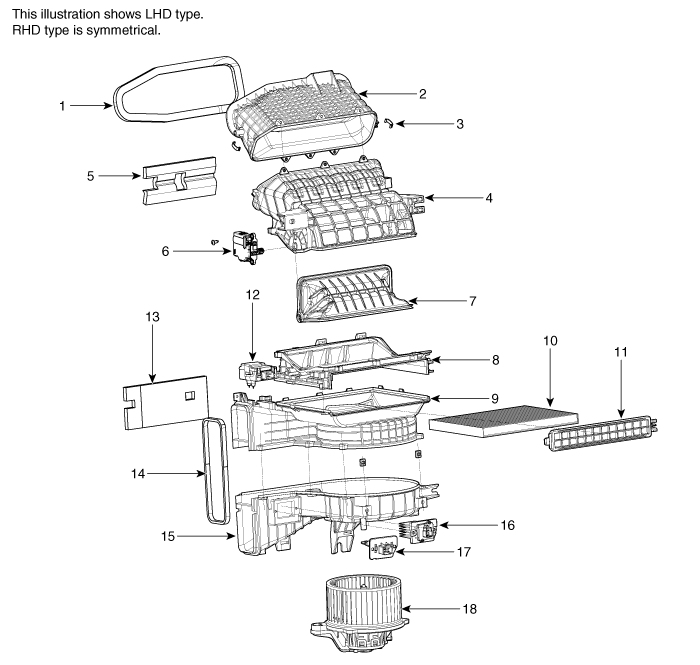

Components

1. Intake Seal
2. Intake Joint Duct
3. Case To Case Clip
4. Intake Upper Case
5. Antinoise Pad
6. Intake Actuator Motor Assembly

7. Intake Door Assembly
8. Intake Lower Case
9. Blower Upper Case
10. Air Filter
11. Filter cover
12. Cluster Ion Generator

13. Antinoise Pad
14. Blower Unit Seal
15. Blower Lower Case
16. FET Assembly
17. Blower Speed Resistor
18. Motor & Wheel Assembly

Blower Unit Repair procedures

Replacement 1. Disconnect the negative (-) battery terminal. 2. Recover the refrigerant with a recovery/recycling/charging station. ...
