Kia Carens RP (2013-2018) Service Manual / Engine Mechanical System / Cylinder Block / Components and components location

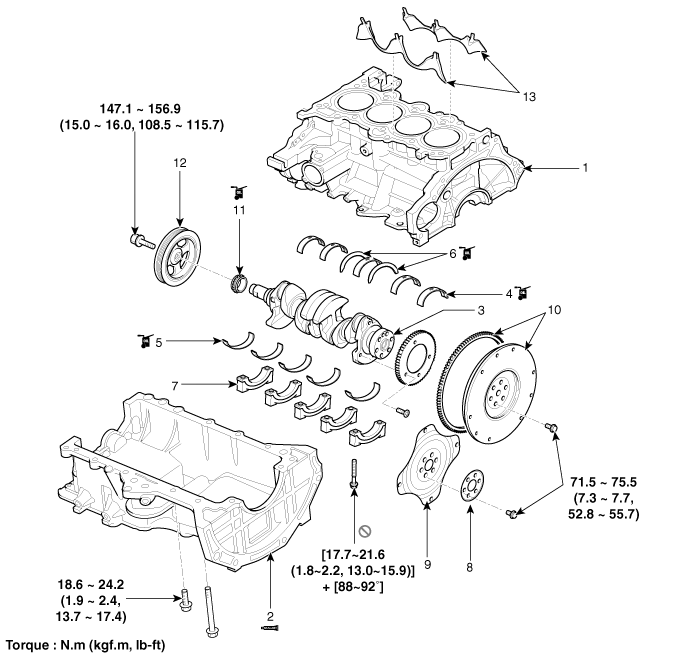

Components

1. Cylinder block
2. Ladder frame
3. Crankshaft
4. Crankshaft upper bearing

5. Crankshaft lower bearing
6. Thrust bearing
7. Main bearing cap
8. Adapter plate

9. Drive plate
10. Fly wheel
11. Crankshaft sproket
12. Crankshaft pulley
13. Water jacket insert
