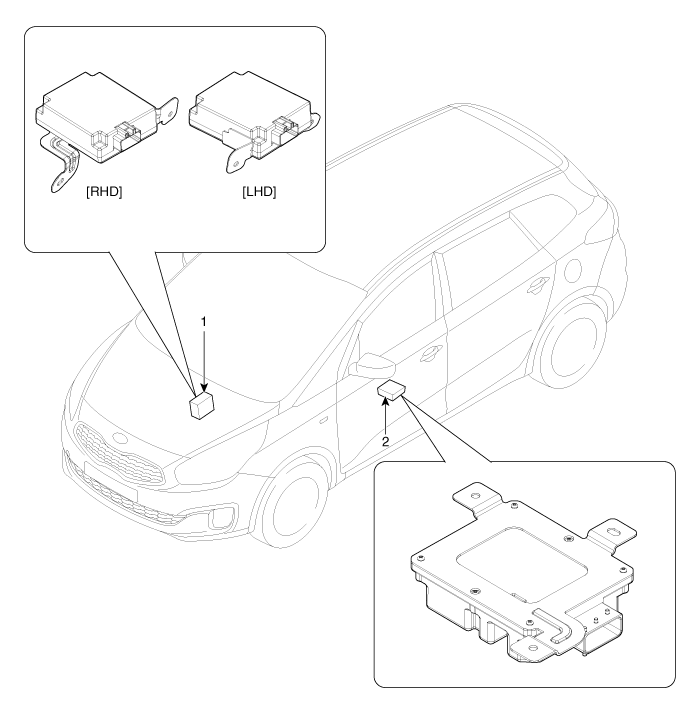

Component Location

1. DC/DC converter [200W]
2. DC/DC converter [400W]

DC DC converter Description and operation

Description Due to the considerably more frequent occurrence of starting operations, the electrical load that occurs often leads to voltage dips in the vehicle network. In ord ...

DC DC converter Schematic diagrams

Circuit Diagram ...
